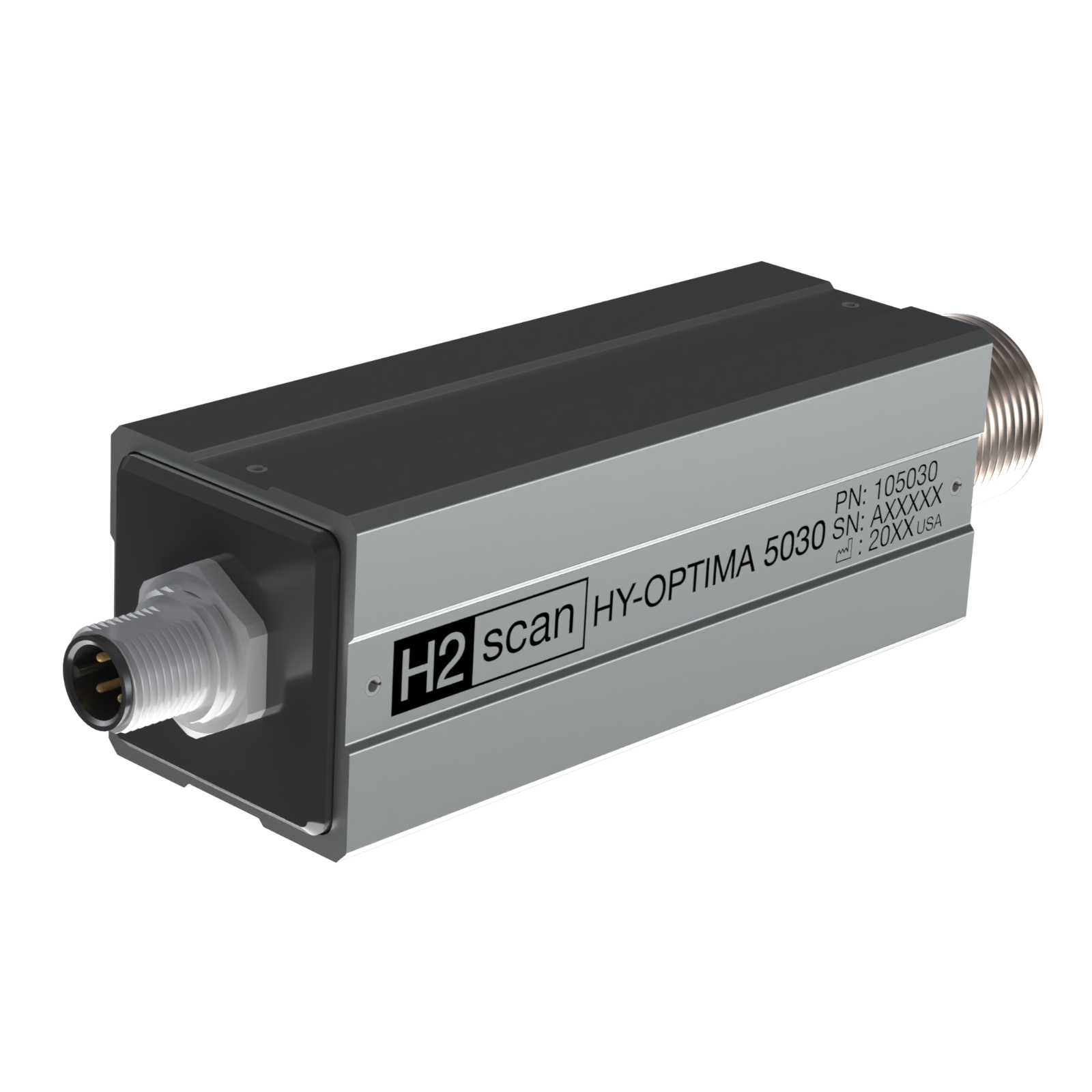

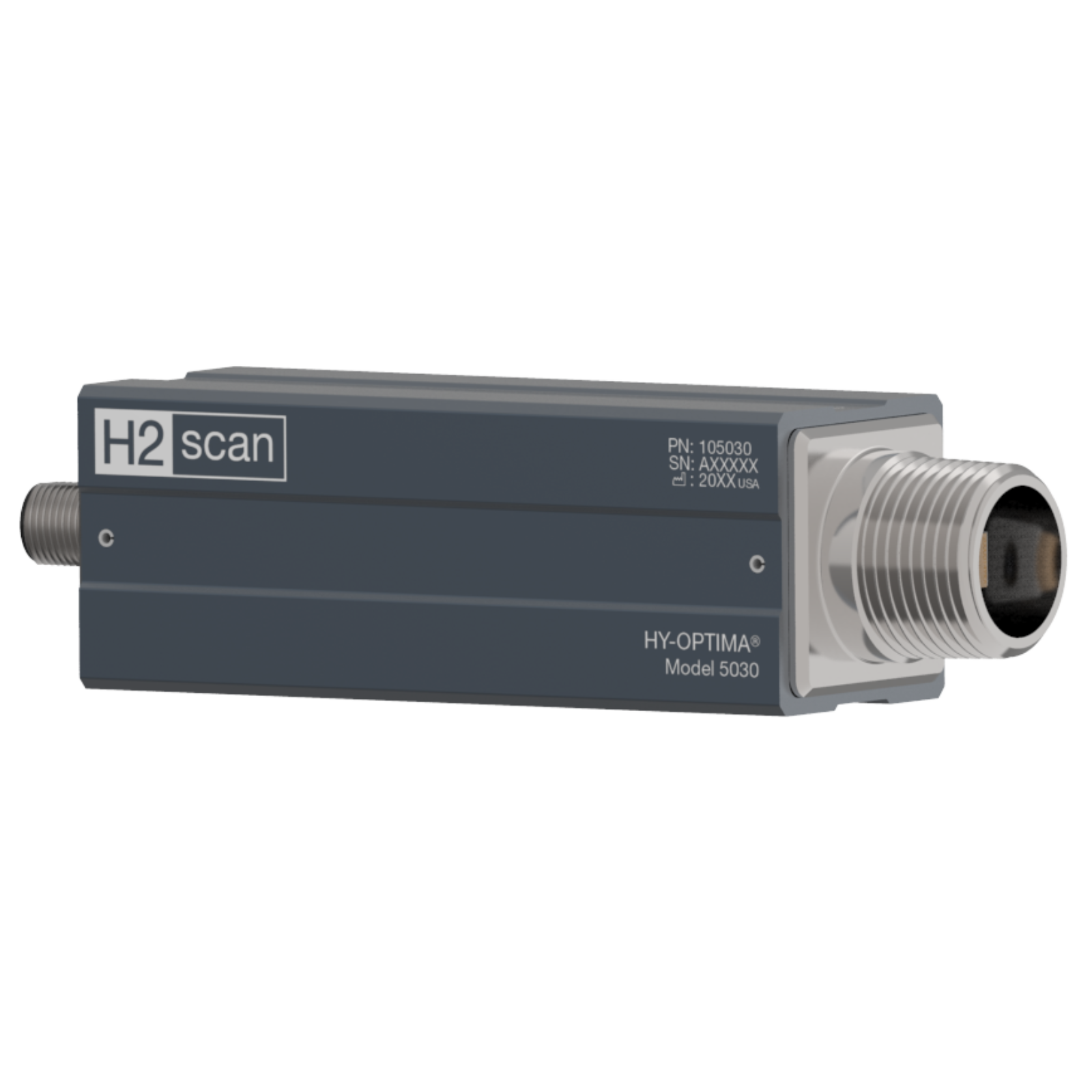

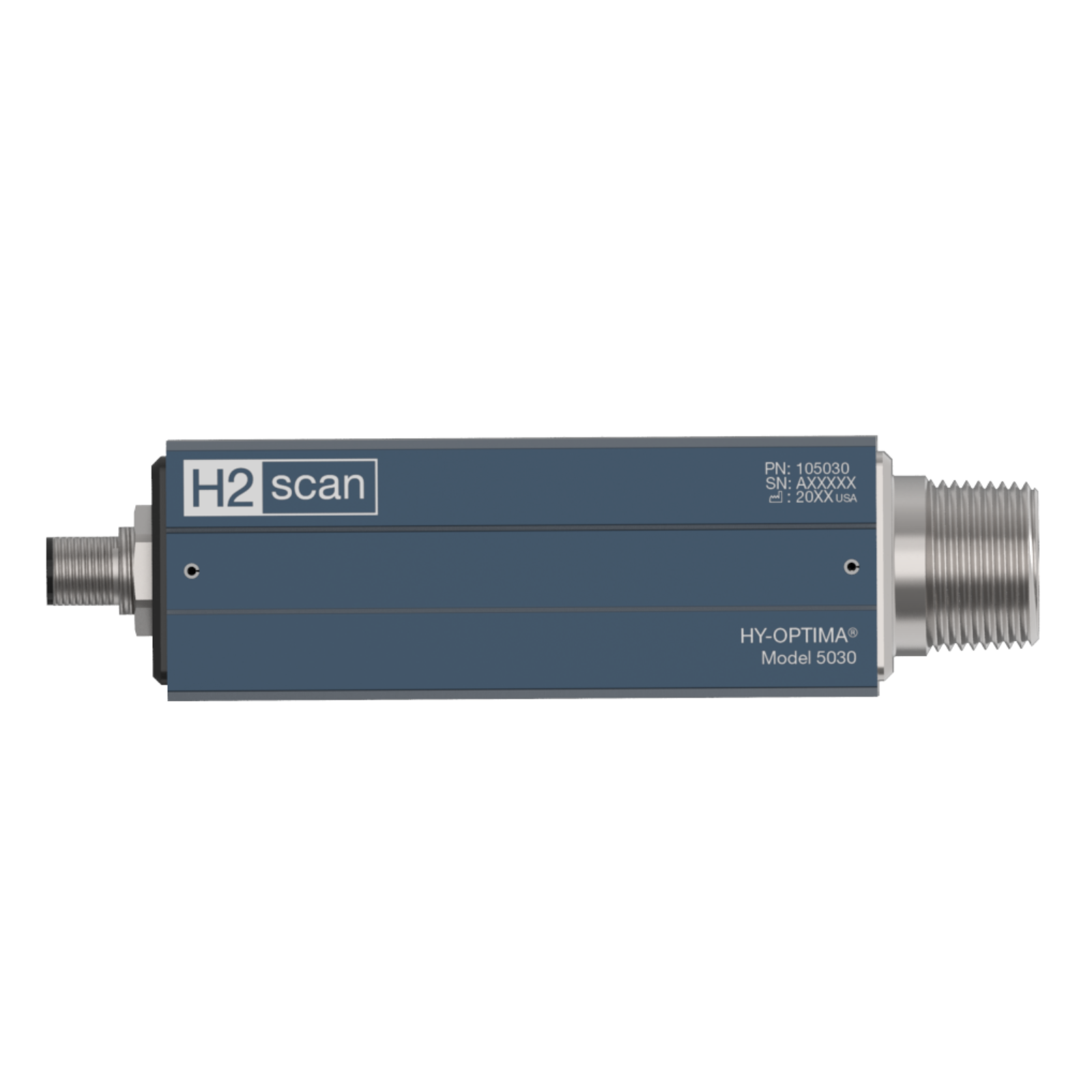

HY-OPTIMA^® 5030 Series

Overview

• Solid-state, non-consumable sensor
• No cross-sensitivity to other gases
• Self-calibration maintains measurement accuracy

Introduction

H2scan’s HY-OPTIMA 5030 Series analyzers utilizes H2scan’s Gen 5 technology to provide the most accurate, tolerant, and affordable hydrogen process gas measurement solution for industrial markets. The general purpose-rated analyzer uses a solid-state, non-consumable sensor for direct hydrogen measurement in process gas streams, with no cross sensitivity to other gases. Self-calibration ensures the measurement stays within spec, even in dynamic conditions. Communication with the unit is via serial communication using Modbus RTU over RS485.

The HY-OPTIMA models 5031, 5033, and 5034 analyzers are intended for use in dry gas streams where hydrogen is always present. The sensor can be safely exposed to hydrogen continuously. The model 5032 is for use in processes where hydrogen is occasionally or intermittently present, as may occur if there is a leak or an upset condition. The analyzers are CE approved for general use operation. H2scan’s HY-OPTIMA 5000 Series inline hydrogen process analyzer featuring self-calibration is ideal for standalone use or OEM integration into existing analyzers. The sensors are used in gas streams where real-time, hydrogen-specific measurements can enhance process plant efficiencies, improve yields, reduce maintenance costs, and enable the hydrogen economy.

The HY-OPTIMA 5030 Series inline hydrogen process analyzer is ideal for standalone use or OEM integration into existing analyzers, in gas streams where real-time, hydrogen-specific measurements can enhance process plant efficiencies, improve yields, reduce maintenance costs, and enable the hydrogen economy.

HY-OPTIMA 5030 Series Specifications

Performance

• Operating pressure at analyzer:
  • Recommended: 0.95 – 1.1 atm absolute (14.0 – 16.1 psia)
  • Maximum: 7 atm absolute
  • Note: Analyzers are factory calibrated at 1 atm abs.
• Process gas temperature: -40 to 60°C
• Flow rate: 0.1 to 10 SLPM (3/4″ tube)
• Operating humidity: < 95% RH (non-condensing)
• Calibration interval: None (self-calibrating)

Output Signal

• Digital: RS485, 2-wire; 19200 baud, 8-bit data, 2 stop bits,
• No parity; Modbus RTU protocol
• Analog: 4-20 mA available via optional module
• Relays: Four Form C relays available via optional module

Power

• Input voltage: 8.1 – 52.8 VDC
• Input power: 10 W

Physical

• Dimensions: 5.9 in (L) x 1.6 in (W) x 1.6 in (D)
• 15.1 cm (L) x 4 cm (W) x 4 cm (D)
• Weight: 0.8 lbs (0.4 kg)
• Electrical fitting: M12 4-wire
• Sensor fitting: ¾”-14 MNPT

Environmental

• Ingress protection: IP68
• Operating temp: -20°C to 70°C
• Storage temp: -20°C to 105°C

Reliable Data for AI and Analytics

Proprietary self-monitoring technology continuously validates sensor performance, delivering clean, accurate data your AI and predictive maintenance initiatives demand. Unlike sensors that fail silently and corrupt your data record, H2scan sensors alert you immediately if performance degrades—ensuring every data point is reliable for both today’s monitoring needs and tomorrow’s analytics.

Product Selection

The HY-OPTIMA 5030 Series product family includes sensor types that are designed to read hydrogen levels with CO and H2S are not present. Please see product selection table below.

MODEL	5031	5032	5033	5034
Hydrogen Range Low	0%	0%	0%	0%
Hydrogen Range High	10%	5%	100%	100%
Lower Detection Limit	0.03%	0.4%	0.5%	0.5%
CO Limit	100 ppm	0	100 ppm	20%
H2S Limit	20 ppm	0	1000 ppm	3%
T90 Response Time (sec)	<90	<60	<60	<90

Certifications

• CE
• FCC
• RoHS
• WEEE
• Conflict Minerals

Technical Information

Physical	Dimensions: 149.8 x 40.64 x 40.64 mm (5.89 x 1.6 x 1.6 in) Weight: 0.4 kg (0.8 lbs) Fittings: M12 4-wire. Fitting: 3/4” -14 MNPT
Environmental	Ingress Protection: IP68 Operating Temperature (Ambient): -20°C to 70°C (-4°F to 158°F) Storage Temperature: -20˚C to 105˚C (-4°F to 221°F)
Power	Input Voltage: 12-30 VDC Input Power: 10 W
Performance	Recommended Operating Pressure: 0.95 - 1.1 ATM Absolute: (14.0 - 16.1 psia) Maximum Operating Pressure: 10 ATM Absolute Process Gas temperature: -40°C to 60°C (-40°F to 140°F) Flow Rate: 0.1 to 10 slpm (3/4” tube) Operating Humidity: 95% RH (non-condensing) Calibration: None (self-calibrating)
Communications	Digital: RS485, 2-wire; 19200 baud, 8 bit data, 2 stop bits, parity; Modbus RTU Protocol Analog: 4 - 20 mA available via optional accessory
