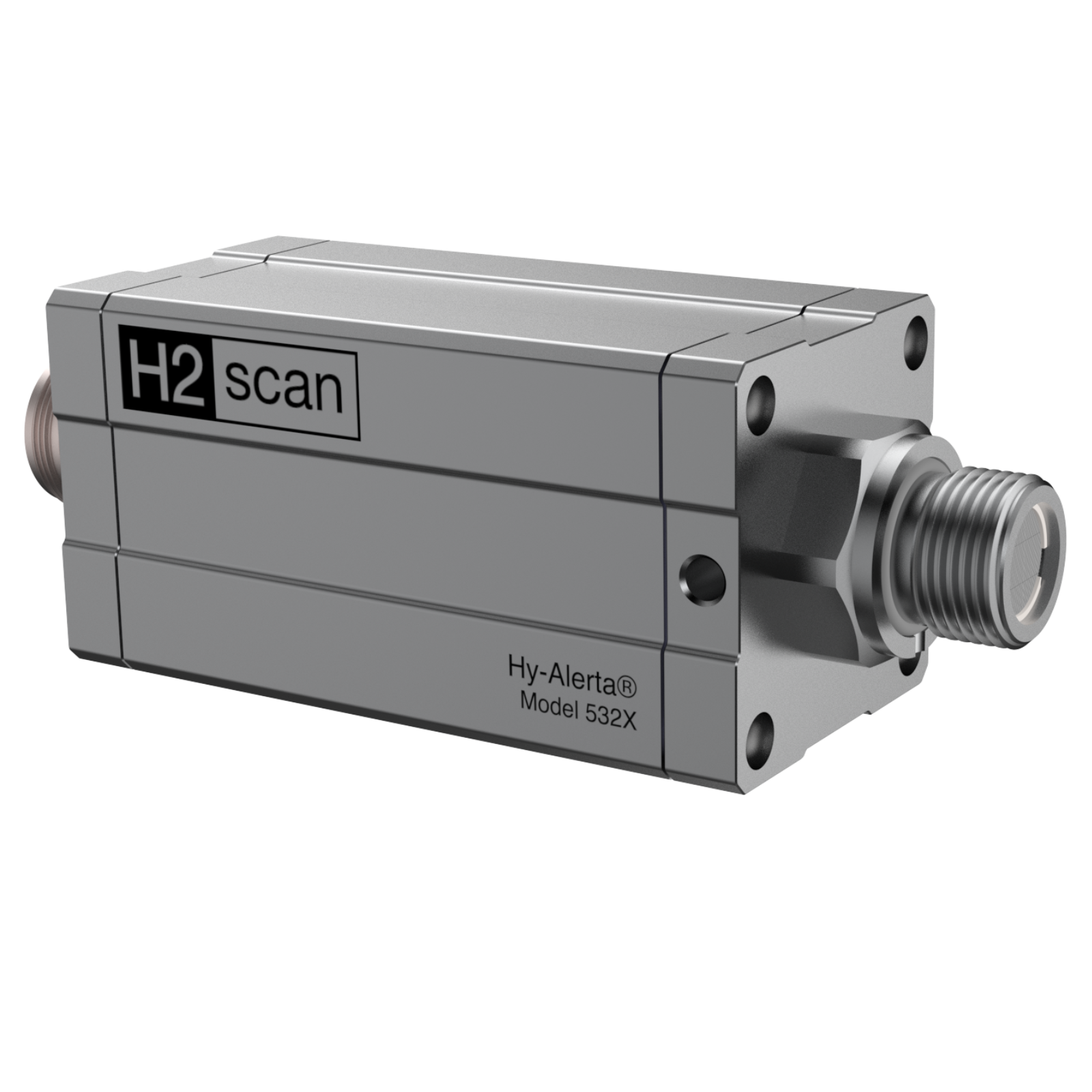

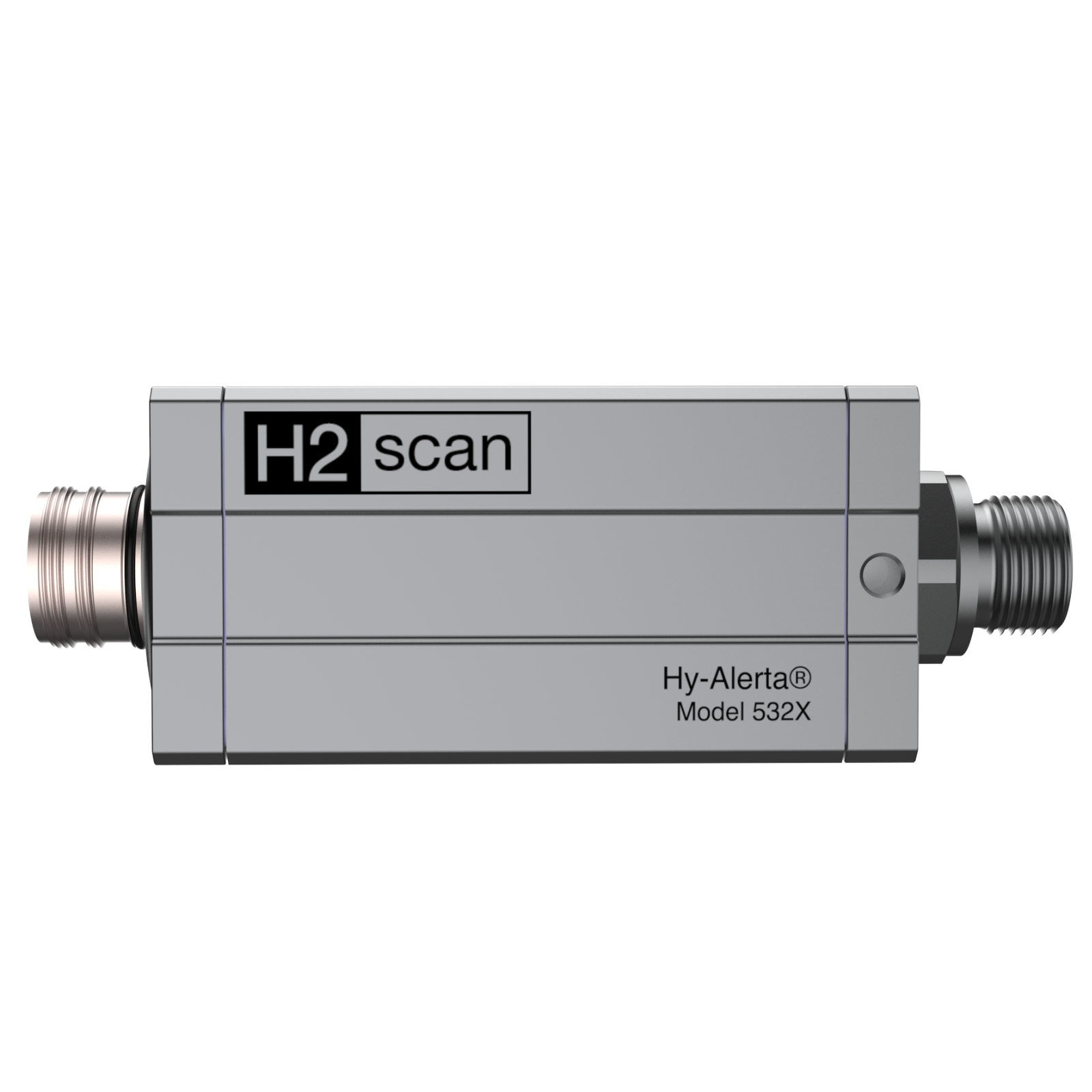

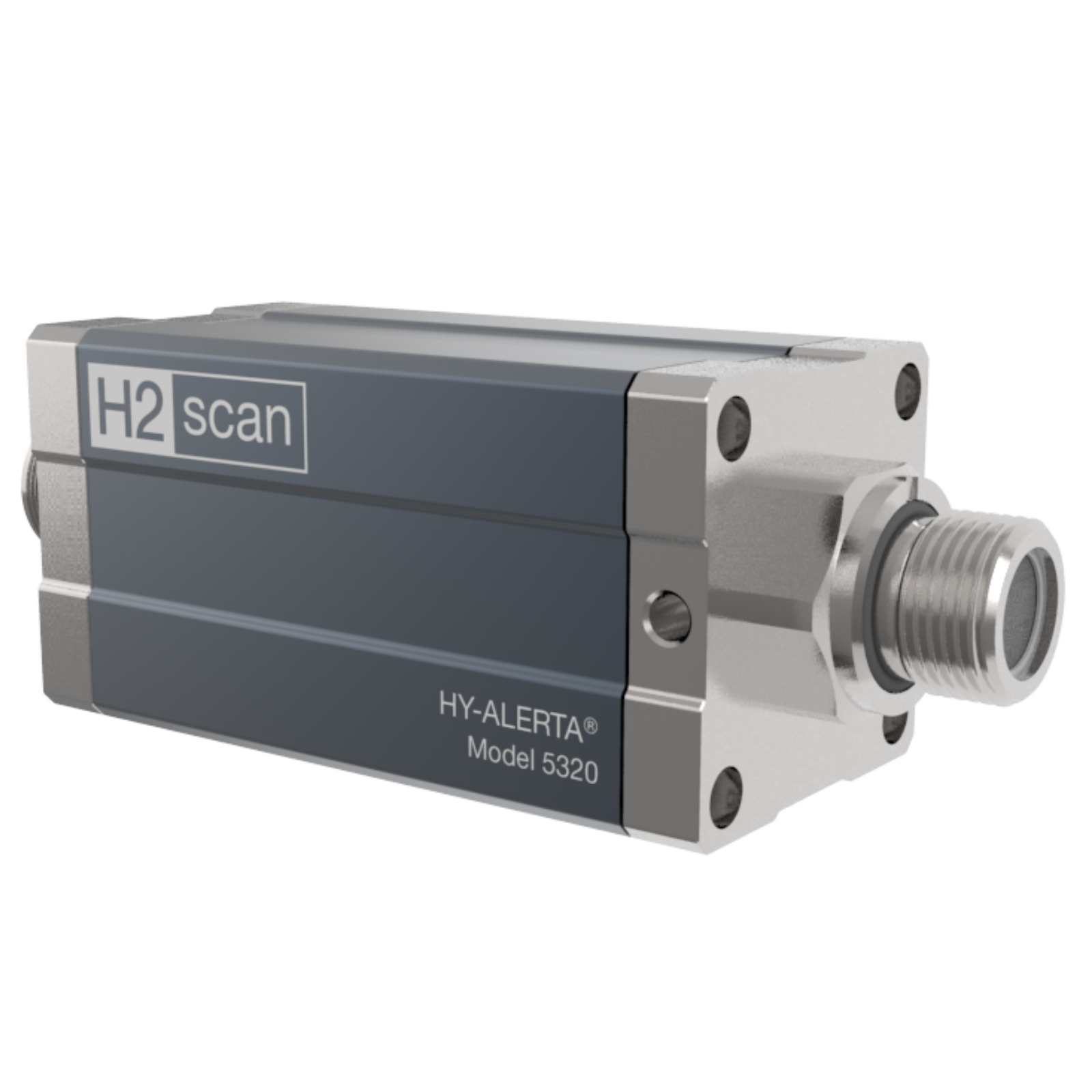

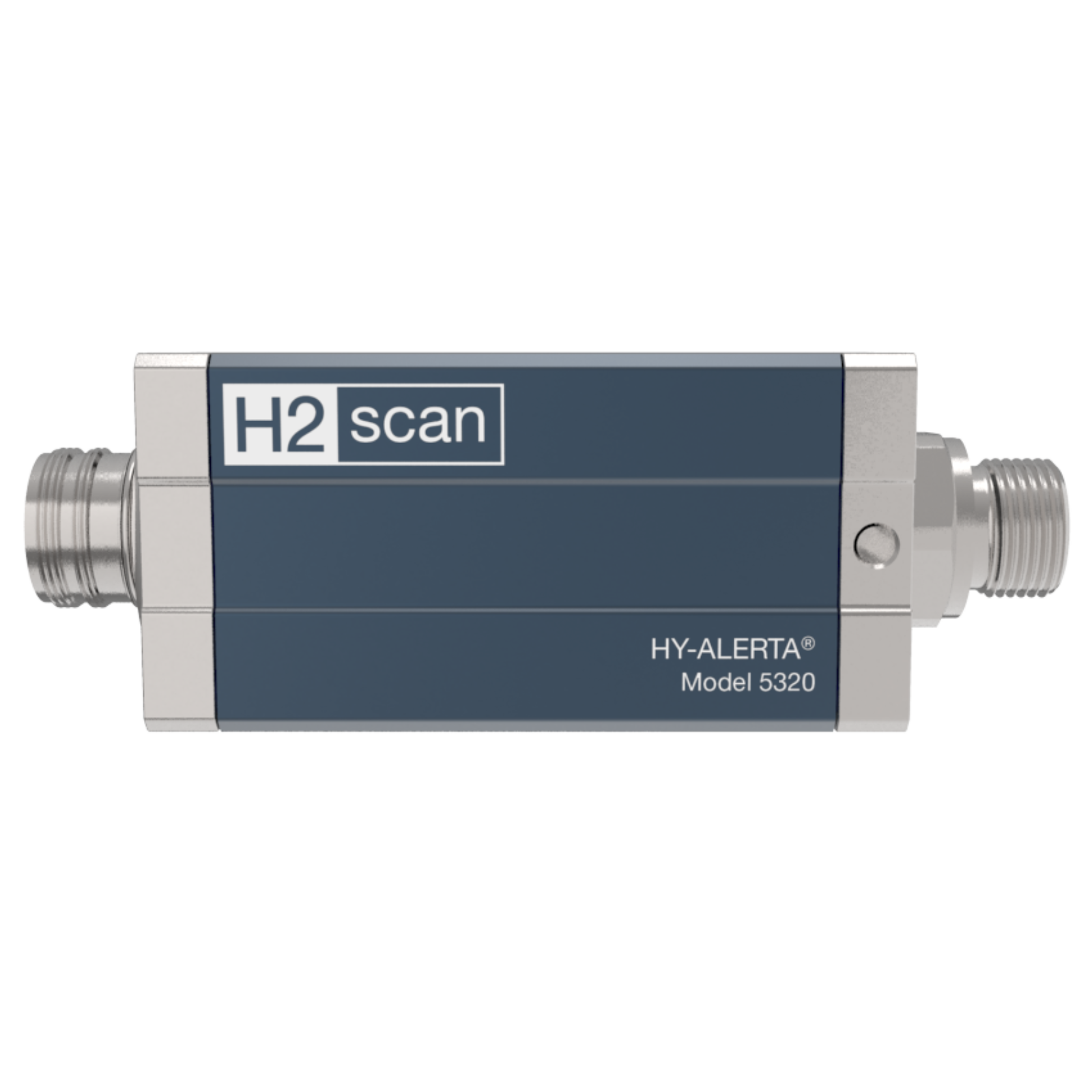

HY-ALERTA® 5320 Intrinsically Safe Hydrogen Area Monitor
Rapid Response Hydrogen Leak Detection Improves Safety
- Intrinsically safe design
- Proprietary, proven technology
- Versatile mounting options (wall, ceiling, surface)
Features
The HY-ALERTA® 5320 Hydrogen Area Monitor brings proprietary technology for enhanced safety in environments where hydrogen leaks can prove hazardous. A compact form factor and multiple mounting options make the HY-ALERTA 5320 easy to install on any surface, wall or ceiling for rapid, accurate hydrogen detection in any facility producing, storing or utilizing hydrogen. Hydrogen-based process lines, gas blending operations, energy storage, fuel cell/electrolyzer facilities, data centers and battery rooms can realize real-time, continuous hydrogen monitoring with an intrinsically safe product with a 10-year sensor warranty.
- No false alarms from cross-sensitivity to other gases
- Low total cost of ownership
- Zero manual calibration requirements
- Zero maintenance
- Zero consumables like calibration gases
- Zero sensor replacements with 10+ year operational lifespan
- 100% continuous monitoring
- Sensor-linking capability
- Multiple interface standards and alarm outputs
- Ideal for leak detection in areas with space constraints
Reliable Data for AI and Analytics
Proprietary self-monitoring technology continuously validates sensor performance, delivering clean, accurate data your AI and predictive maintenance initiatives demand. Unlike sensors that fail silently and corrupt your data record, H2scan sensors alert you immediately if performance degrades—ensuring every data point is reliable for both today’s monitoring needs and tomorrow’s analytics.
Product Selection
| Model | 5320 |
|---|---|
| Hydrogen Range Low | 0.40% |
| Hydrogen Range High | 5% |
| CO Limit | 0 |
| H2S Limit | 0 |
| T90 Response Time (sec) | <60 |
| Accuracy Low to 10% H2 | 0.3% |
| Accuracy 10 to 100% H2 | N/A |
| Drift / Week | None |
| Repeatability Low to 10% H2 | 0.30% |
| Repeatability 10 to 100% H2 | N/A |
| Linearity Low to 10% H2 | 0.30% |
| Linearity 10 to 100% H2 | N/A |
Technical Information
| Physical |
|
| Environmental |
|
| Power |
|
| Performance |
|
| Communications |
|
