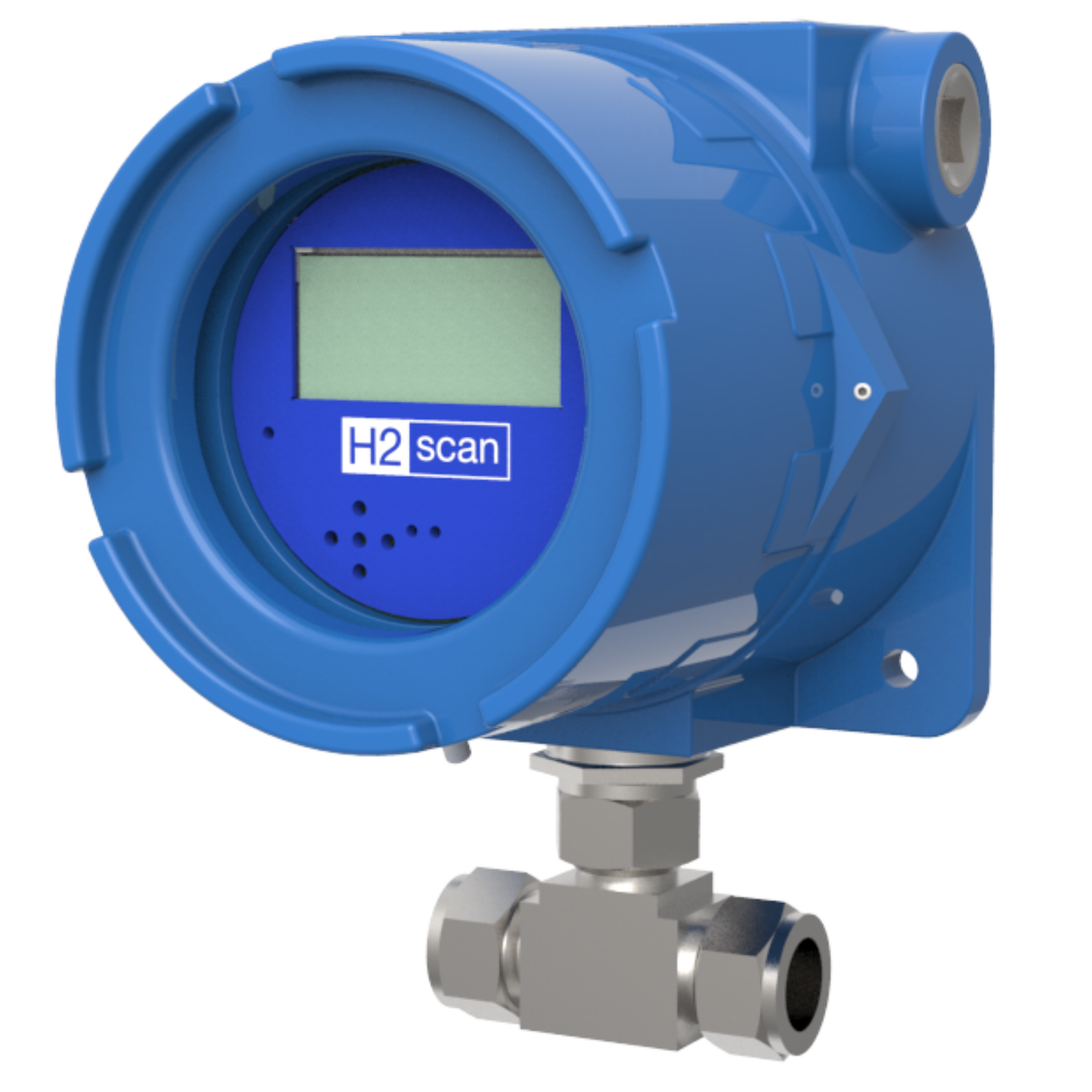

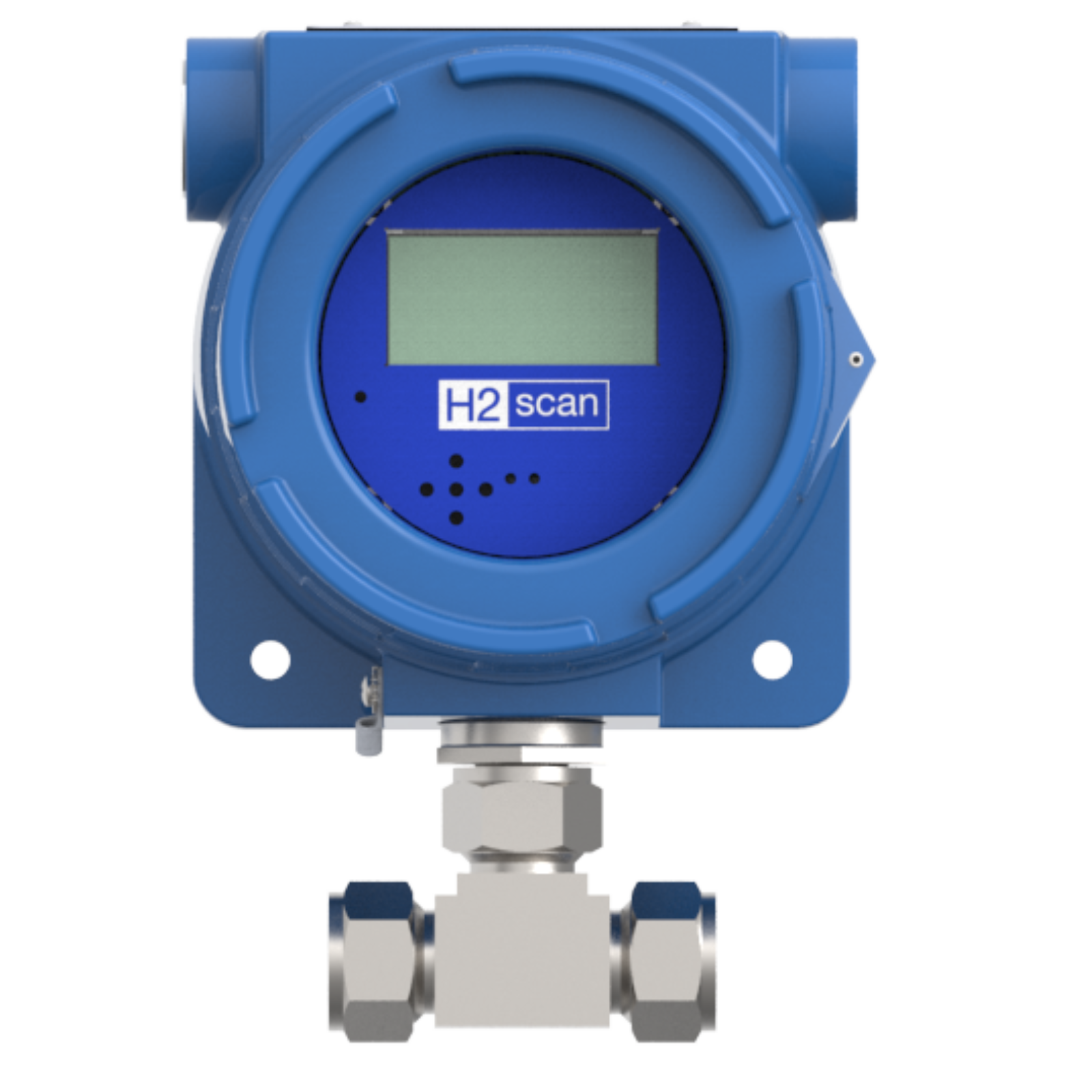

HY-OPTIMA® 2700 Series Explosion Proof In-line Hydrogen Process Analyzer
Explosion Proof In-line Hydrogen Process Analyzer
- Solid-state, non-consumable sensor
- Hydrogen-specific measurement
- Explosion-proof design
Configuration Details
H2scan’s HY-OPTIMA® 2700 series in-line, real time hydrogen-specific process analyzers are designed for ease of use, interface flexibility and true process control. The HY-OPTIMA 2700 series is an explosion proof device that incorporates our patented solid-state sensor and is configured to operate in background gas streams with up to 95% relative humidity and temperatures up to 60ºC. The HY-OPTIMA 2700 series is ideal for process gas applications where real time continuous measurements of hydrogen can increase process plant efficiencies, improve diagnostics and enhance maintenance management translating into higher profitability.
- Verification Interval: 90 days
- Product Life Expectancy: 10 Years
- Pressure Compensation: Yes
- Operating Humidity: < 95% RH (non condensing)
- Flow Rate: 0.1 to 10 slpm
- Process Gas Temperature: -20°C to 60°C
- Operating Temperature-20°C to 55°C
- Storage Temperature -30°C to 80°C
- Output Signals
- Analog: 4 to 20mA (or user specific mA)
- Serial: RS422 or TS422
- Relay Contacts2: 5A/240 VAC or 5A/30 VDC
- Input Voltage: 90-240 VAC
- Input Power: 15W
- Dimensions: 7.5in (L) x 5.4in (W) x 5.7in (D)
- Adapter Fitting: 3/4 in Union Tee Compression
- ATEX versions are limited to 1.1 ATM max process gas pressure
- Two programmable relays and one fault relay with normally open (N.O.) and normally closed (N.C.) contacts
Product Selection
| Model | 2710 | 2720 | 2730 | 2740 |
|---|---|---|---|---|
| Hydrogen Range Min | 0.1% | 0.4% | 0.5% | 0.5% |
| Hydrogen Range Max | 10% | 5% | 100% | 100% |
| Hydrogen Must be Present | Yes | No | Yes | Yes |
| CO Limit | <100 ppm | 0 | <100 ppm | 20% |
| H2S Limit | <20 ppm | 0 | <1000 ppm | 3% |
| T90 Response Time (sec) | <90 | <60 | <60 | <90 |
| Accuracy Min to 10% H2 | 0.15% | 0.3% | 0.3% | 0.3% |
| Accuracy 10 to Max% H2 | N/A | N/A | 1% | 1% |
| Drift/Week Min to 10% H2 | 0.15% | 0.3% | 0.2% | 0.2% |
| Drift/Week 10 to Max% H2 | N/A | N/A | 0.4% | 0.4% |
| Repeatability Min to 10% H2 | 0.15% | 0.3% | 0.2% | 0.2% |
| Repeatability 10 to Max% H2 | N/A | N/A | 0.4% | 0.4% |
| Linearity Min to 10% H2 | 0.15% | 0.3% | 0.2% | 0.2% |
| Linearity 10 to Max% H2 | N/A | N/A | 0.4% | 0.4% |
| Calibration Background Gas | N2 | O2, N2 | N2 | N2 |
NOTE: Sensor performance specifications are absolute and assume a dry process stream, an ambient temperature of 25°C, pressure compensation, and are in addition to any errors in the calibration gases used.
Certifications
| Certifications | |
| 2700 |
|
| Remote |
|
Technical Information
| Physical |
|
| Environmental |
|
| Power |
|
| Performance |
|
| Communication |
|
Also Consider

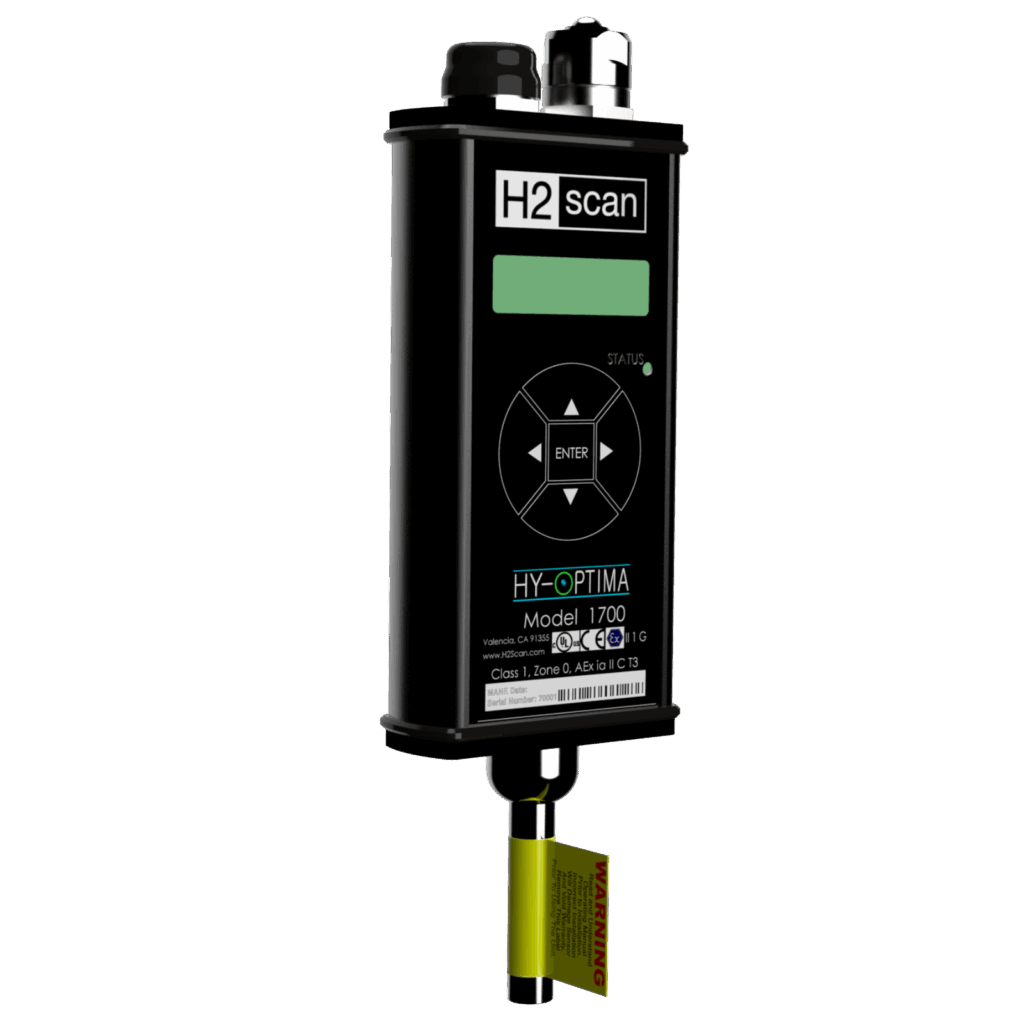

HY-OPTIMA® 1700 Series Intrinsically Safe In-line Hydrogen Process Analyzer
