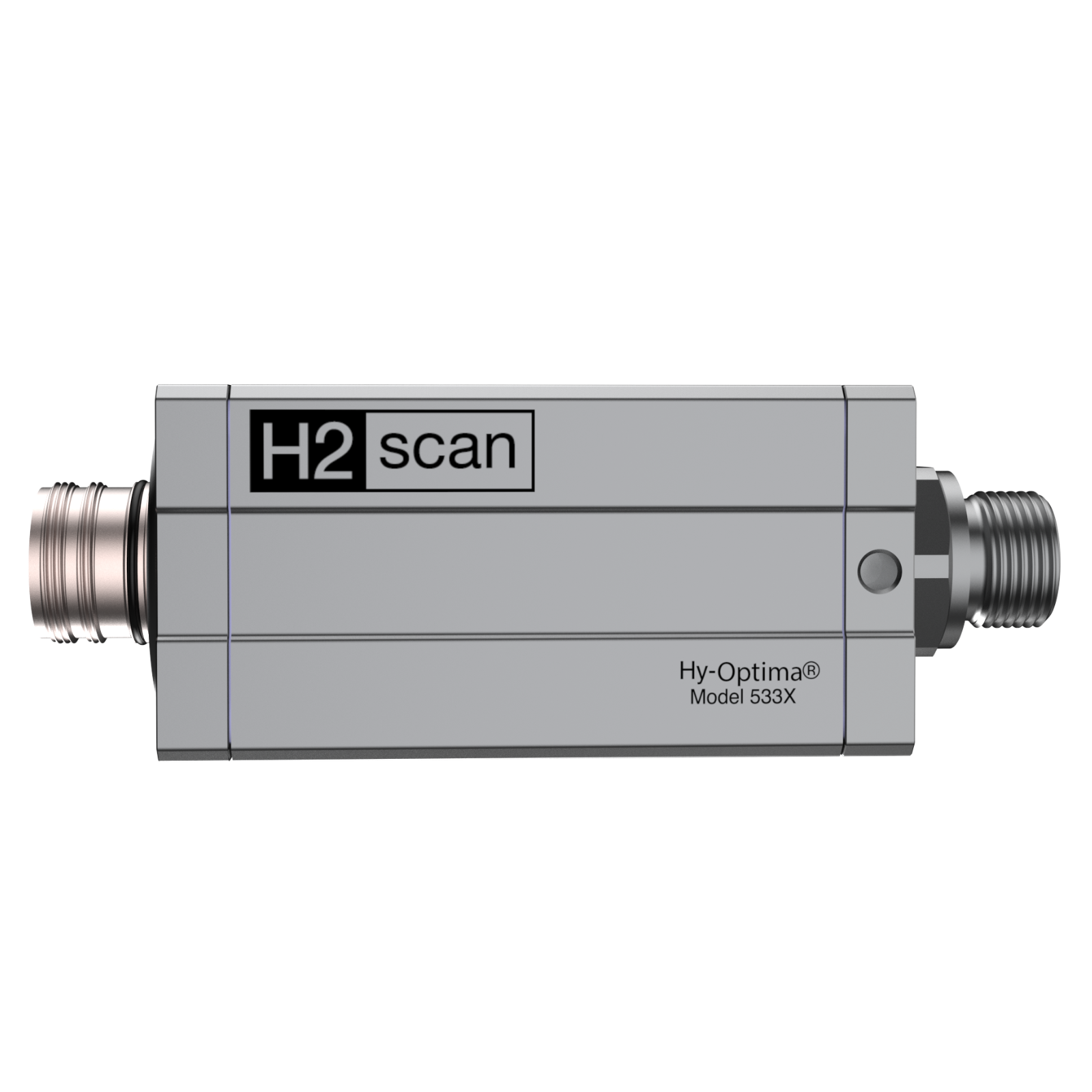

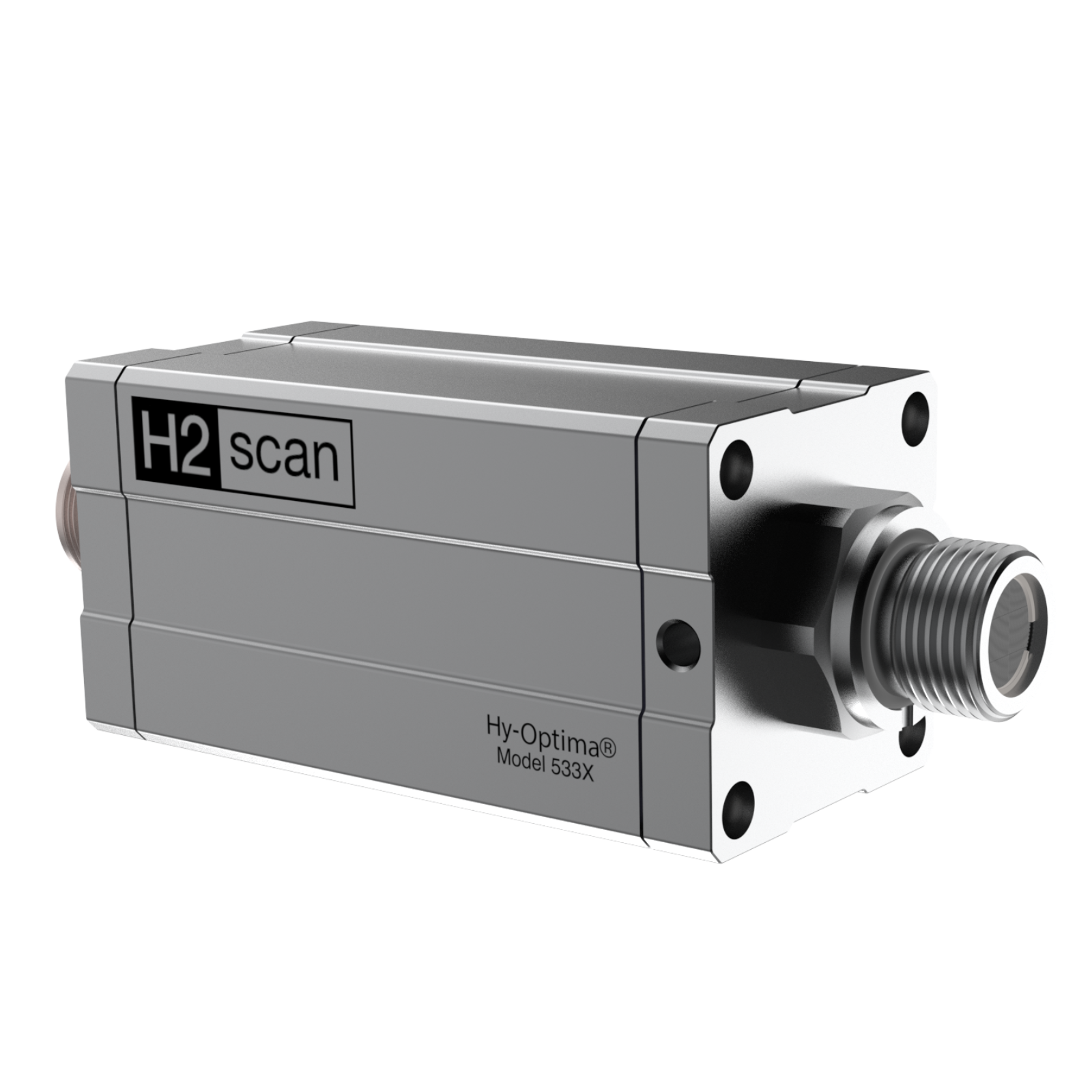

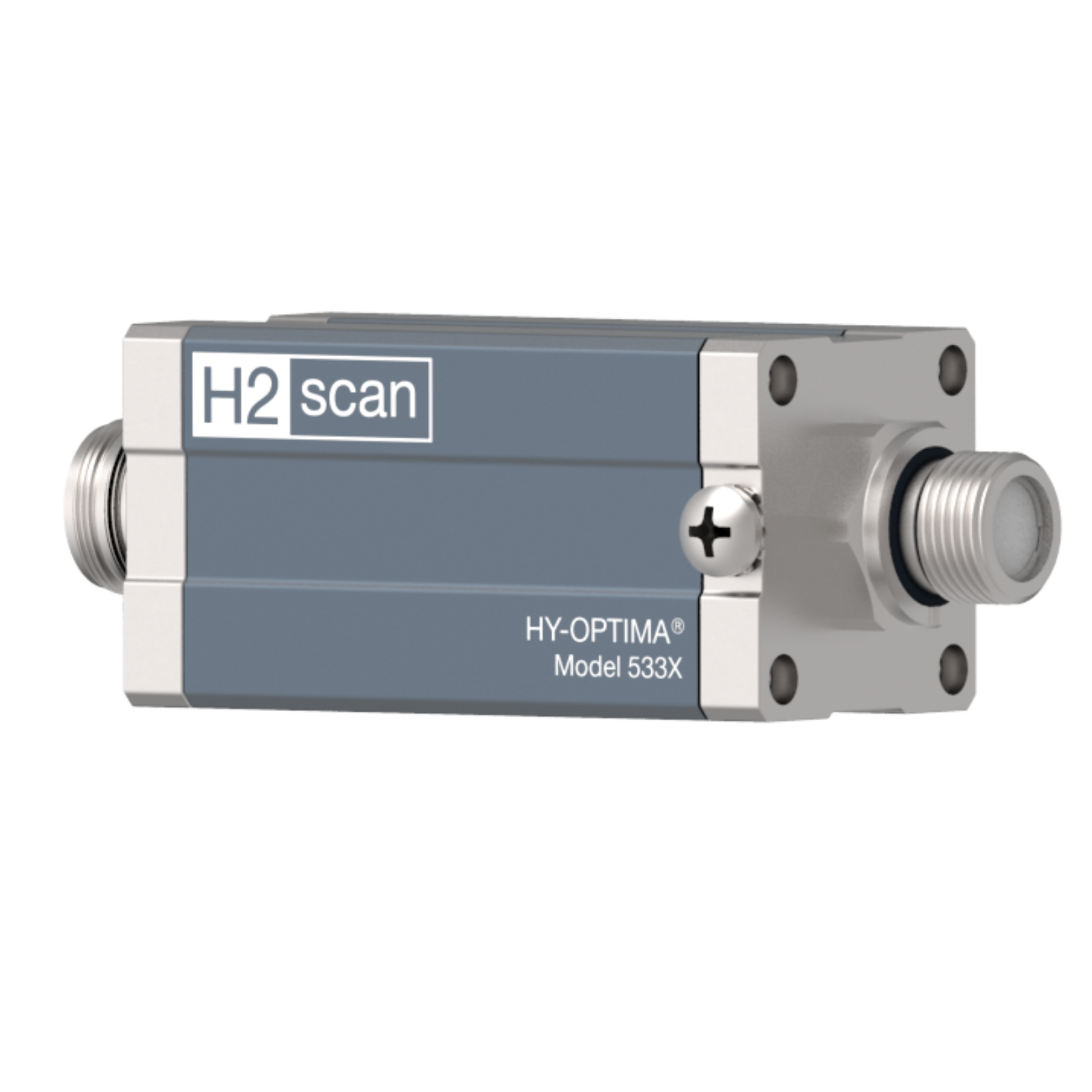

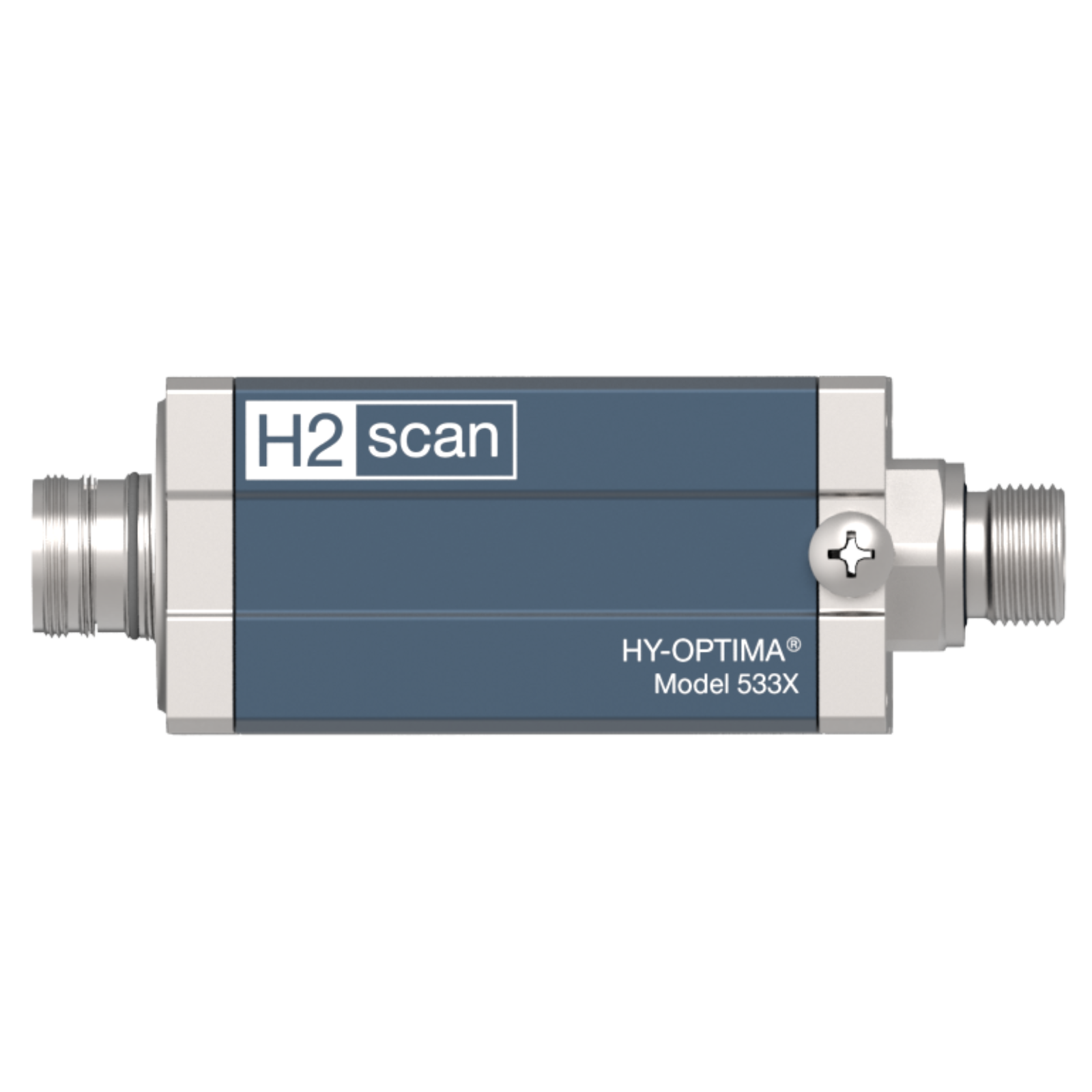

NEW! HY-OPTIMA® 5330 IS Gen 5 Analyzer Family
Intrinsically Safe Hydrogen In-Line Process Analyzer
- Intrinsically safe design
- 10+ years auto-calibration
- Versatile installation options
Features
The intrinsically safe HY-OPTIMA® 5330 Analyzer family brings unparalleled reliability and durability to hydrogen in-line monitoring for diverse applications within the industrial processing sector, from chemical facilities and refineries to the burgeoning green hydrogen economy. The unit is built on H2scan’s patented, solid-state hydrogen sensing technology, the only hydrogen analyzer on the market that can provide at least 10 years of auto-calibration operation. Easy installation for stand-alone hydrogen measurement or as the hydrogen monitoring component within existing OEM devices.
- Zero manual calibration requirements
- Zero consumables like calibration gases
- Zero reference or carrier gases required
- Zero sensor replacements due to its up to 10-year lifespan
- No false alarms from cross-sensitivity to other gases
- 100% continuous real-time, accurate monitoring with no process downtimes
- Tolerant of many harsh background contaminants
- Easy connectivity via digital serial communications, analog output and relay trigger alarms for safety systems
- Compact design for versatile installation options
Product Selection
The HY-OPTIMA 5330 Series product family includes sensor types that are designed to read hydrogen levels with CO and H2S are not present. Please see product selection table below.
| Model | 5331 | 5332 | 5333 | 5334 |
|---|---|---|---|---|
| Hydrogen Range Low | 0.03% | 0.4% | 0.5% | 0.5% |
| Hydrogen Range High | 10% | 5% | 100% | 100% |
| CO limit | 100 ppm | 0 | 100 ppm | 20% |
| H2S Limit | 20 ppm | 0 | 1000 ppm | 3% |
| T90 Response Time (sec) | <90 | <60 | <60 | <90 |
| Process Gas Temperature | -20°C to 60°C (-4°F to 140°F) | -20°C to 80°C (-4°F to 176°F) | -20°C to 60°C (-4°F to 140°F) | -20°C to 50°C (-4°F to 122°F) |
| Accuracy Low to 10% H2 | 0.15% | 0.3% | 0.3% | 0.3% |
| Accuracy 10 to 100% H2 | N/A | N/A | 1% | 1% |
| Drift / Week | None | None | None | None |
| Repeatability Low to 10% H2 | 0.15% | 0.3% | 0.2% | 0.2% |
| Repeatability 10 to 100% H2 | N/A | N/A | 0.4% | 0.4% |
| Linearity Low to 10% H2 | 0.15% | 0.3% | 0.2% | 0.2% |
| Linearity 10 to 100% H | N/A | N/A | 0.4% | 0.4% |
Technical Information

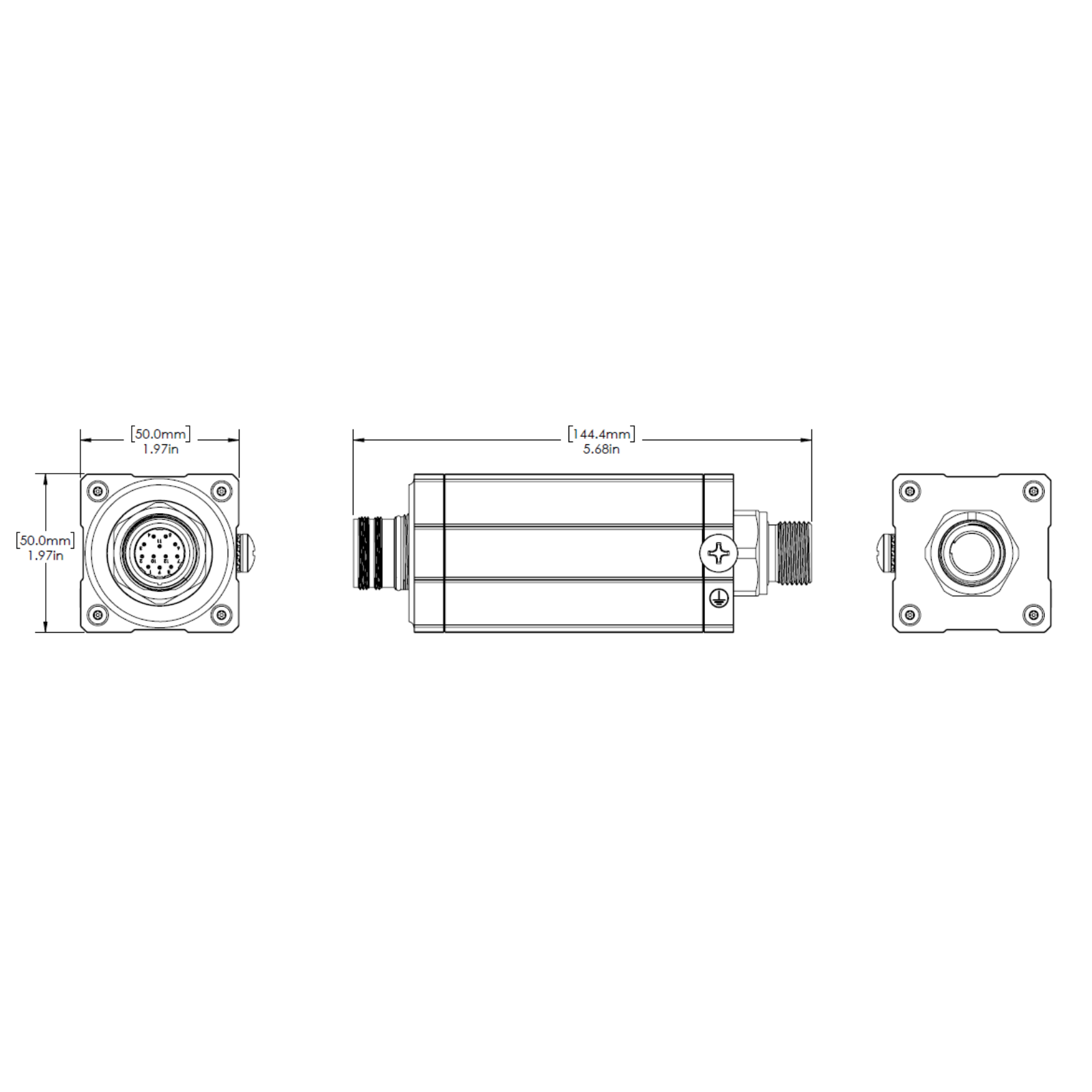

| Physical |
|
| Environmental |
|
| Power |
|
| Performance |
|
| Communications |
|
