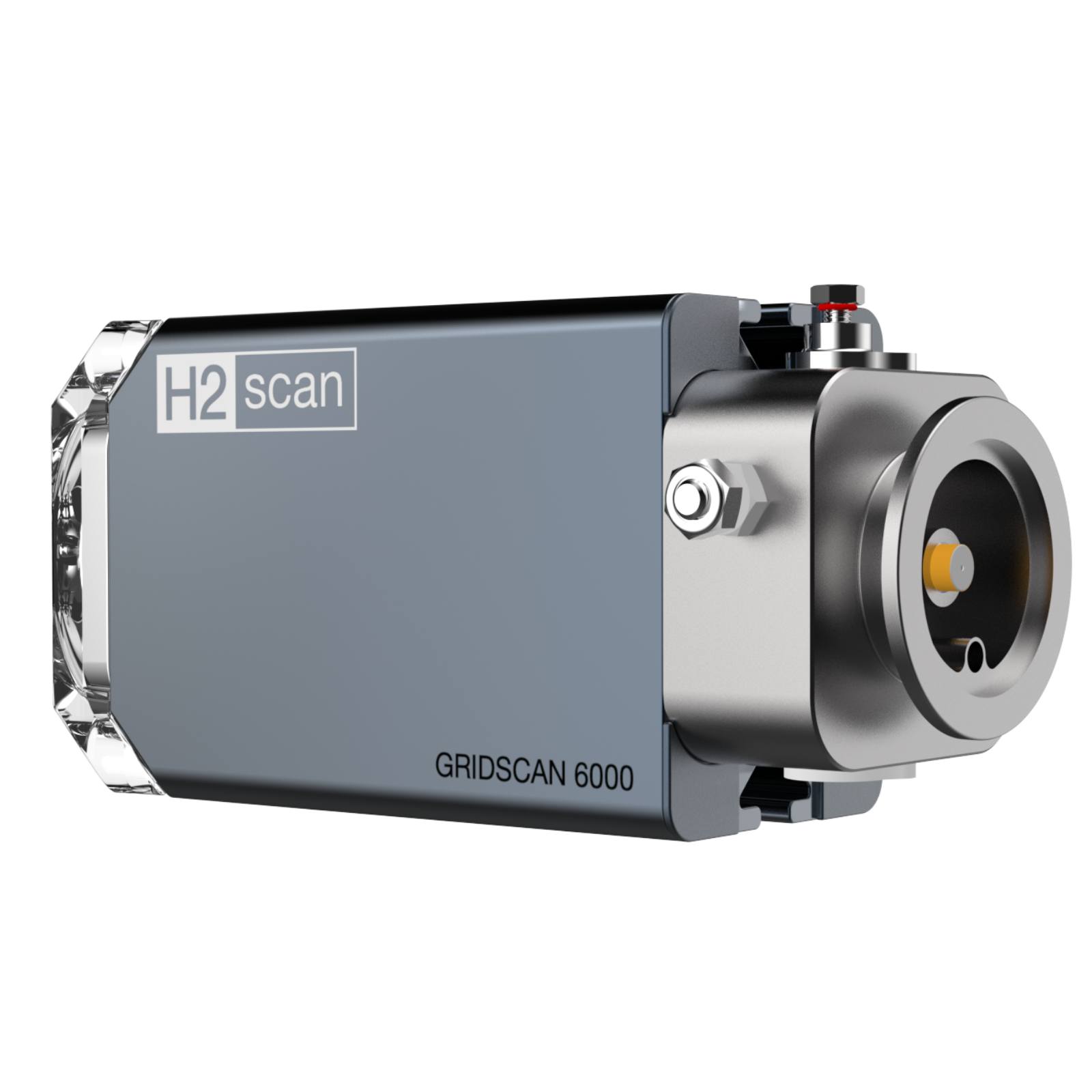

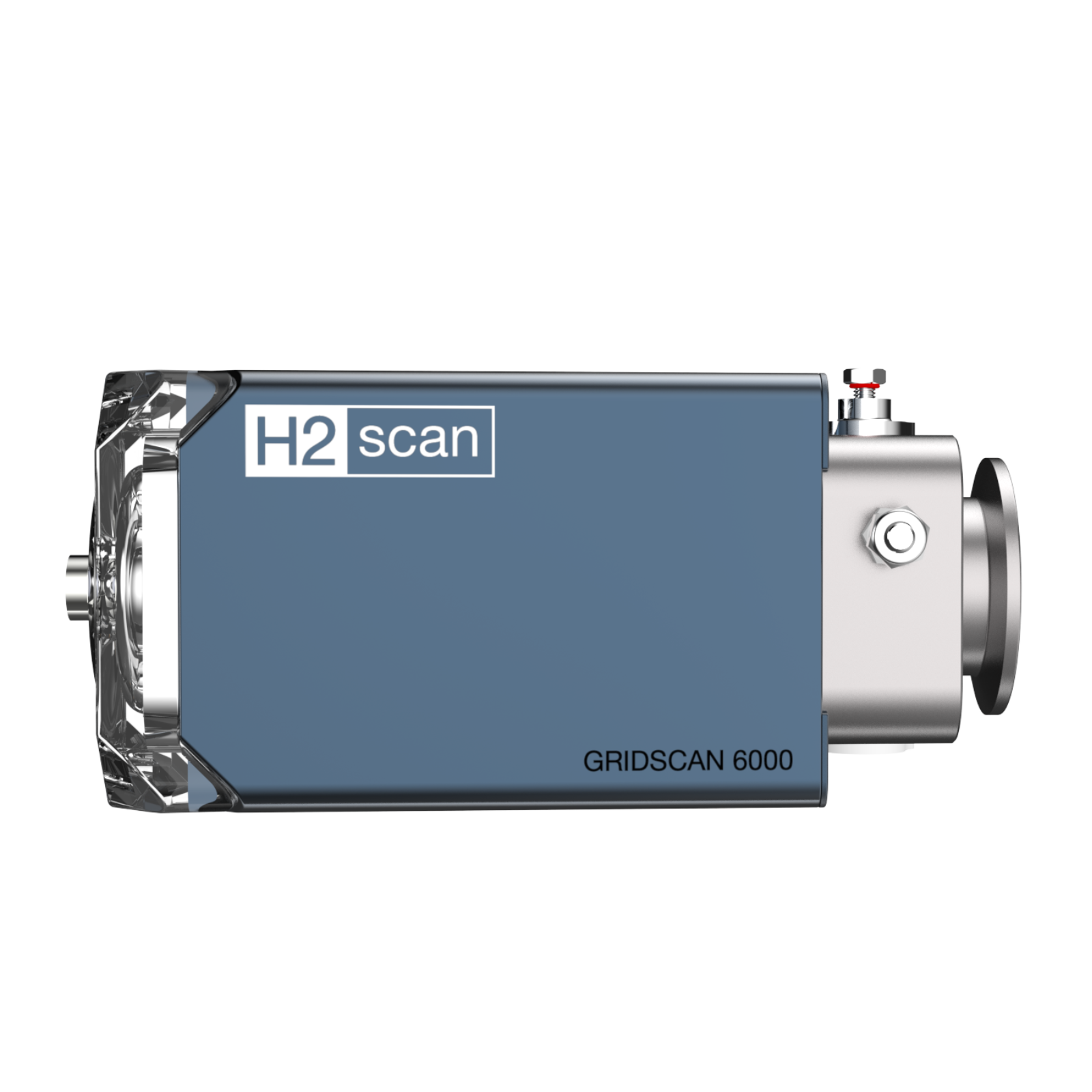

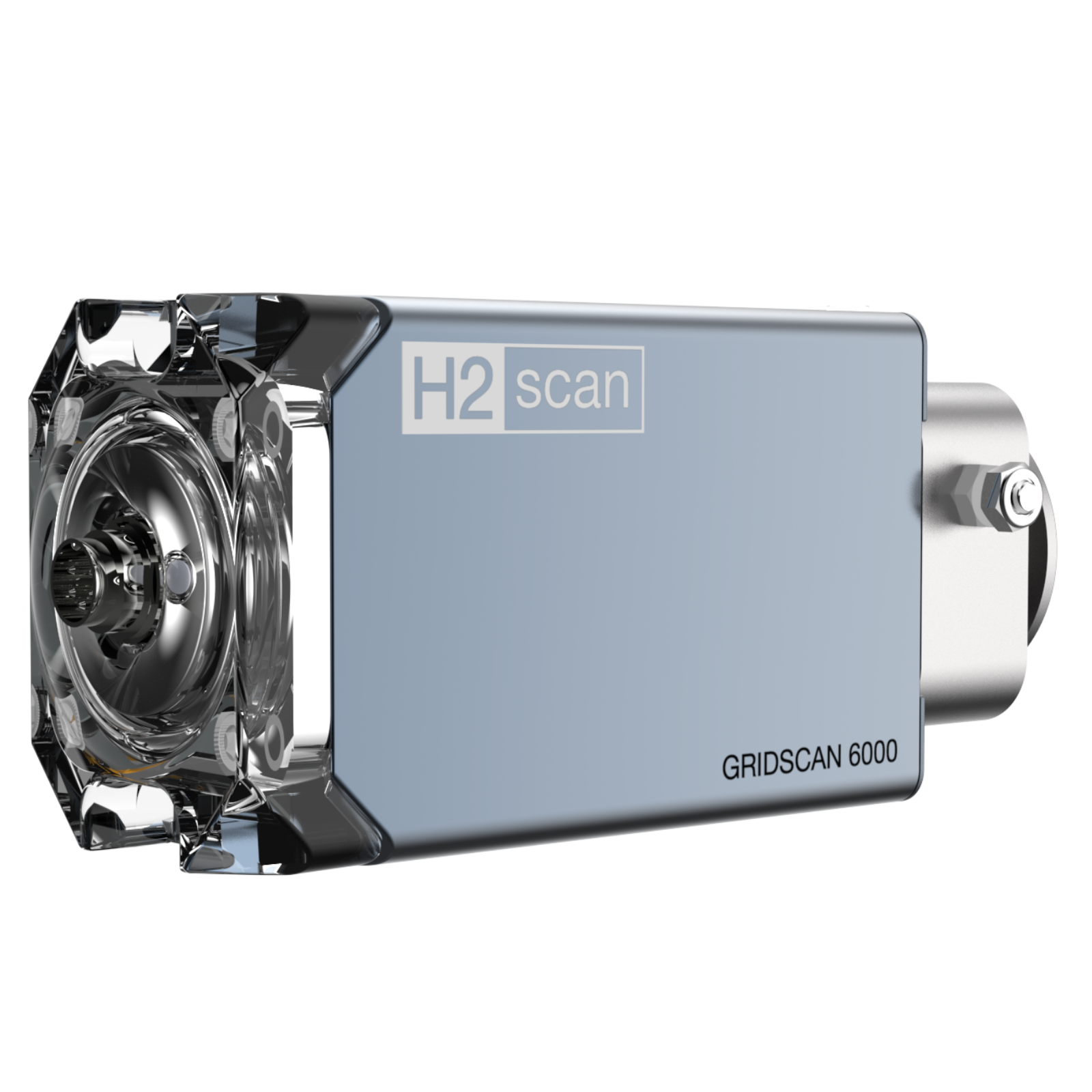

GRIDSCAN^® 6000 Multi-Sense Monitor

Multi-Sense Monitor

First monitoring solution to combine 4 critical measurements
Half the price of competitive systems
Continuous, real-time data

Request a Quote GRIDSCAN^® 6000 Datasheet

Features

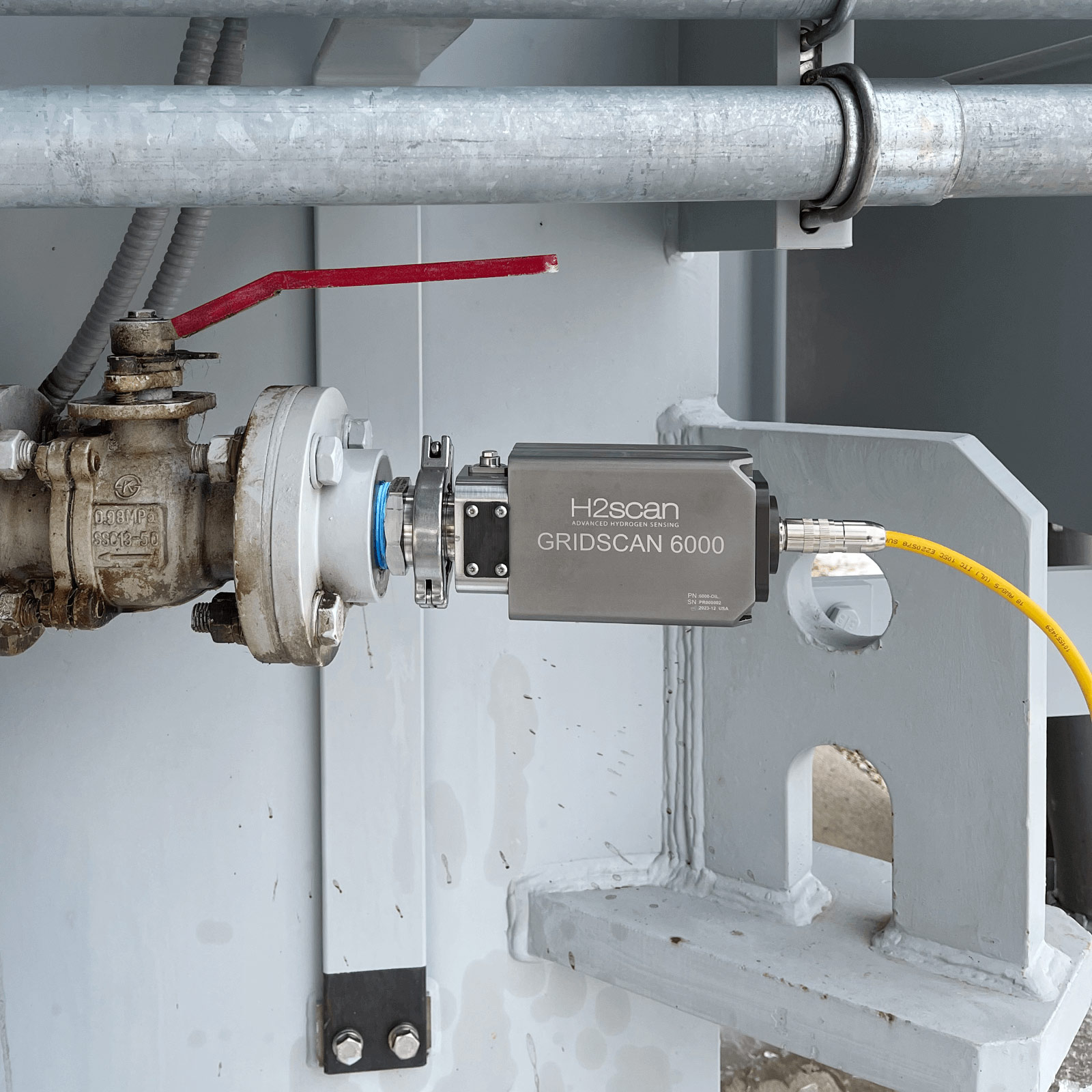

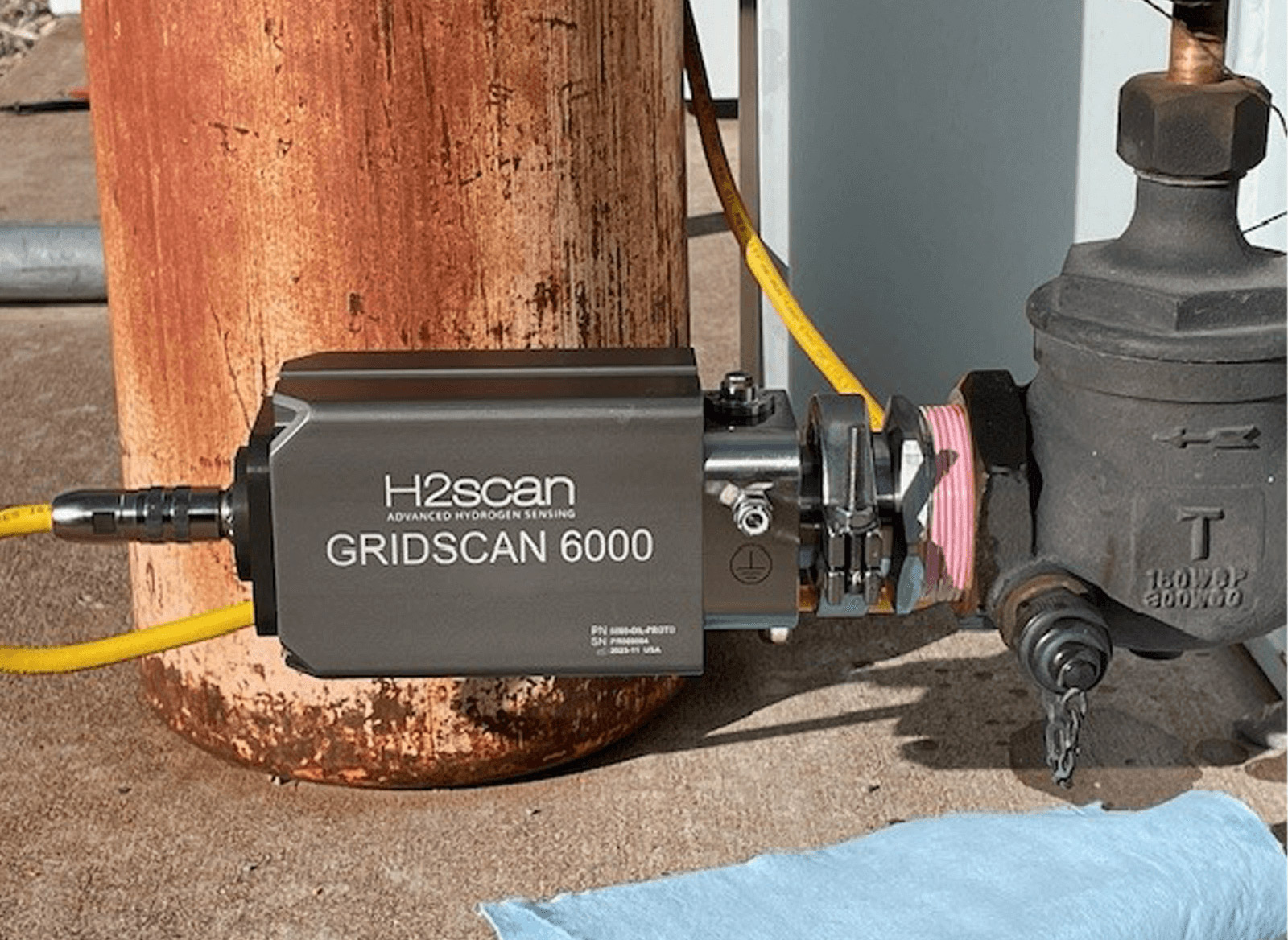

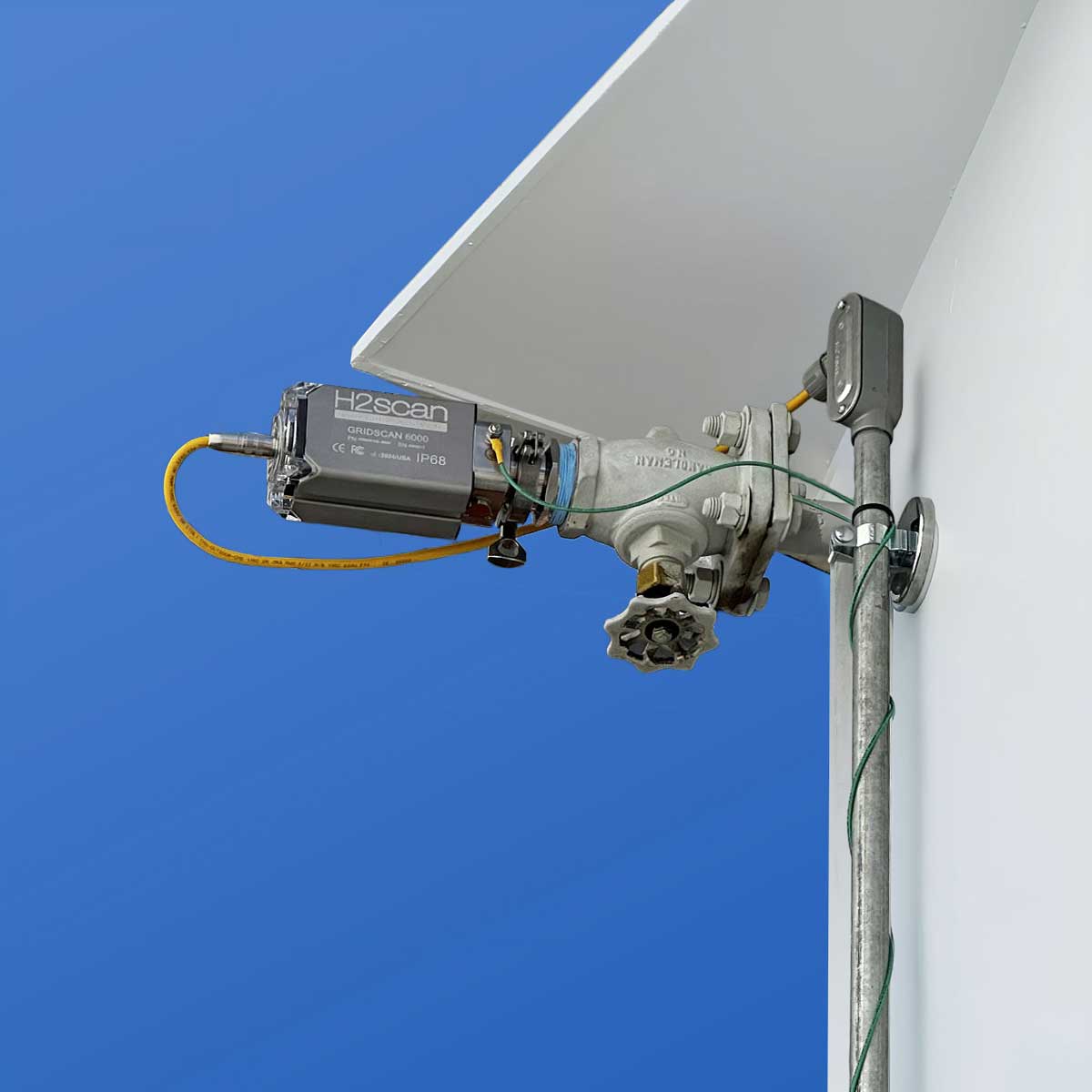

Protect Transformers with All-In-One GRIDSCAN^® 6000: Hydrogen, Moisture, Temperature and Pressure Measurement

H2scan’s GRIDSCAN^® 6000 breaks new ground in transformer monitoring, being the first in the market that combines four critical measurements; hydrogen, the first fault gas, moisture, pressure and temperature. The GRIDSCAN 6000 delivers continuous, real-time data, alerting asset managers to abnormal transformer conditions that may lead to catastrophic events. It delivers more capability than competitive monitors but at half the price.

The only transformer monitor that combines hydrogen, moisture, pressure and temperature measurement
Market leading range of environmental operating conditions supported (hot/cold/salt water/submersible)
Ideal for a fleetwide IoT deployment strategy, but also supports conventional SCADA connectivity
Detects pressure drops associated with ballistic damage

Product Selection

MODEL	6000
Insulating Liquid Operating Temperature	-20°C to 105°C (-4°F to 221°F)
Insulating Liquid Survival Temperature	-20°C to 135°C (-4°F to 275°F)
Insulating Liquid Supported	Mineral oil, silicone, natural ester, synthetic ester
Hydrogen Measurement Range	25 to 5000 ppm
Hydrogen Accuracy	±20% of reading or ±25ppm, whichever is greater
Hydrogen Repeatability	±10% of reading or ±15ppm, whichever is greater
Hydrogen Response Time	<60 minutes once H2 reaches sensor
Hydrogen Cross Sensitivity	Less than 2% cross-sensitivity to other gases (CO, CO2, Hydrocarbons)
Moisture Measurement Range (Water Activity)	0 to 95% RS
Moisture Accuracy (a,,)	±2% RS at <20% range, ±8% RS at 20-50% range
Moisture Repeatability	±2% RS
Pressure Measurement Range	0 to 205 kPa Absolute (0 to 30 PSIA)
Pressure Accuracy	±2% FS
Pressure Repeatability	±0.6 kPa Absolute (±1 PSIA)
Temperature Measurement Range	-40°C to 125°C (-40°F to 257°F)
Temperature Accuracy	±2.5°C (±4.5°F)
Temperature Repeatability	<2°C (<3.6°F)

Technical Information

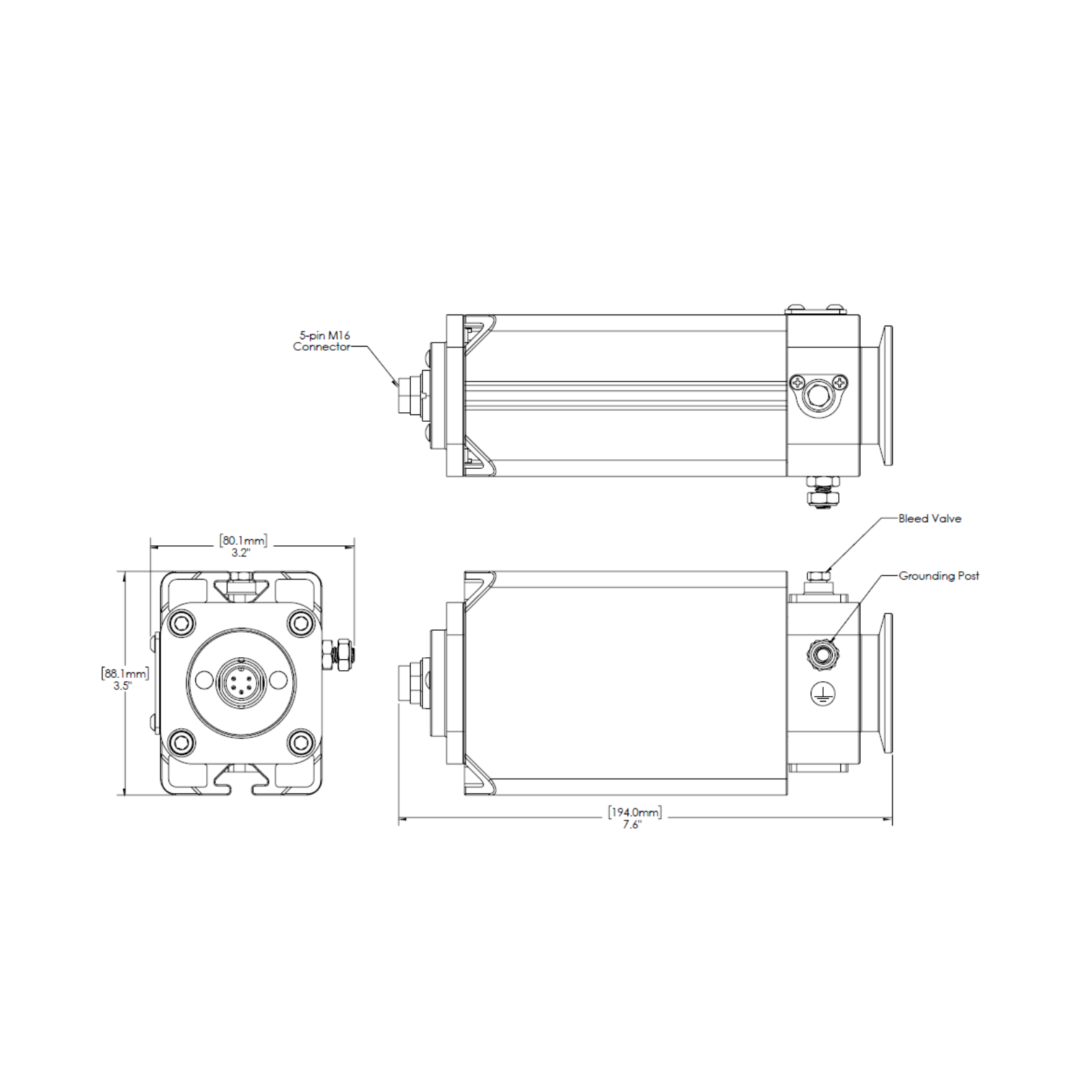

Physical	Dimensions: 19.4 x 8.8 x 6.7 mm (7.63 x 3.47 x 2.65 in) Weight: 1.82 kg (4.01 lb) Integrated Tee Slots: 1.5 inch profile
Environmental	Operating Temperature: -20°C to 70°C (-4°F to 158°F) Storage Temperature: -20°C to 85°C (-4°F to 185°F) Ambient Humidity: 0 to 100% RH, condensing Oil Humidity: 0 to 95% RH, non-condensing Ingress Protection: IP68; 25 feet water for 14 days (IEC 60529) Marine Rating: Salt water condensing (IEC60068-2-11) Operating Altitude: Up to 3000 m (9842.52 ft.) above sea level Operating Pressure at Sensor: 0.1 to 2 bar absolute (1.45 to 30 PSIA)
Power	Voltage Input: 18 VDC to 30 VDC Max Power Consumption: 7W
Performance	Hydrogen Measurement Range: 25 to 5000 ppm Hydrogen Accuracy: ±20% of reading or ±25ppm, whichever is greater Hydrogen Repeatability: ±10% of reading or ±15ppm, whichever is greater Hydrogen Response Time: <60 minutes once H2 reaches sensor Hydrogen Cross Sensitivity: Less than 2% cross-sensitivity to other gases (CO, CO2, Hydrocarbons) Moisture Measurement Range (Water Activity): 0 to 95% RS Moisture Accuracy (a,,): ±2% RS at <20% range, ±8% RS at 20-50% range Moisture Repeatability: ±2% RS Pressure Measurement Range: 0 to 205 kPa Absolute (0 to 30 PSIA) Pressure Accuracy: ±2% FS Pressure Repeatability: ±0.6 kPa Absolute (±1 PSIA) Temperature Measurement Range: -40°C to 125°C (-40°F to 257°F) Temperature Accuracy: ±2.5°C (±4.5°F) Temperature Repeatability: <2°C (<3.6°F)
Communications	Output Signal: 3 wire RS-485, Modbus RTU, 5 pin M16 connector for power and communication Data Log Storage: Dynamic
